About This LED Motion Sensor Lights outdoor
led motion sensor light outdoor | WV-SLWL/T-007
- High-Brightness Solar Sensor light : The infrared induction solar security lights is designed with a double-head, which can produce the high brightness up to 1400lm. When equipped with 4400 rechargeable battery, there is higher charging efficiency. With more expensive monocrystalline silicon solar panels, it can still obtain low-current charging in cloudy/rainy days or areas with insufficient sunlight.
- Solar Lights with Three Working Modes : After detecting the dark, this solar floodlight has three light modes, ① When someone or car passes, the light will be lit for 20 seconds under high brightness, and then completely extinguished. ②When someone or car passes, the light will be lit for 20 seconds under high brightness, and then it will remain on with low brightness until dawn comes. ③Whether there is someone or a car passing by, the light will remain on at low brightness until dawn comes.
- LED Motion Sensor Lights outdoor Greater Irradiation Area : With the innovative arc light head design, as well as two adjustable light bases (upward, downward, left-side and right-side), you can adjust the light bases according to your needs - eliminating the trouble of installing two lighting lights. With up to 140 ° wide induction angle and 6-10 m induction distance, it can meet your daily needs.

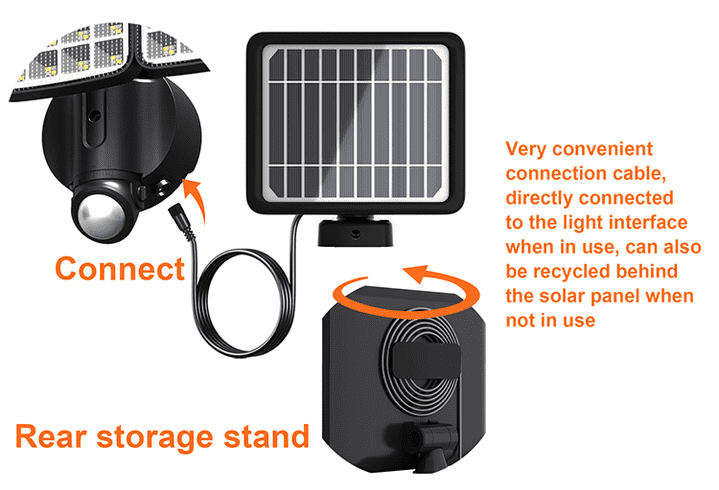

- Flexible, Easy to Install : The solar panels have 3-meter-long wires that can be placed almost anywhere around the house without need of main power or wiring and professional electrician. It is very suitable for porch, backyard, front door, garage, driveway, sidewalk, steps and so on.
- Durable Material & Excellent Customer Service : The sturdy enclosure and the impact resistant PC lens ensure that this double-ended safety light fixture can withstand harsh weather. The IP65 waterproof grade ensures that your two solar security lights will not yield in rainy, sleet or snowy weather. We provide 12 months warranty for the outdoor LED solar lights, please feel free to buy it at any time!
Safety & Warning LED Motion Sensor Lights outdoor
- Read all instructions before using the light and retain for reference.
- This light is not intended for use by persons (including children) with reduced physical, sensor or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the light by a person responsible for their safety.
- This light is designed for consumer use: follow directions and use only as described.
- Do not install close to people , cars, heat source or flammable object.
- Install on a flat,stable position with extension screws.
- Do not look directly into the light while it is on.
- Ensure the solar panel jack is fully insert into the light head fixture socket.

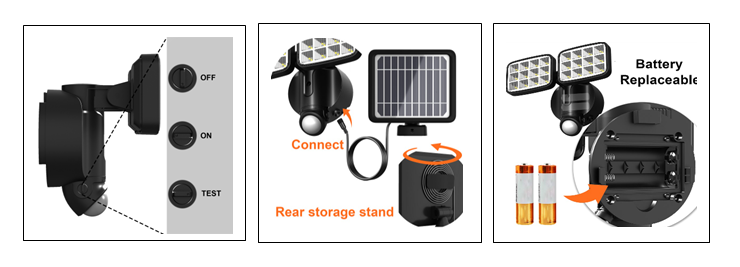

Overview Solar Motion Sensor Security Light
Battery & Replacing system Solar Motion Sensor Security Light
About Battery
The battery is charged by the solar panel. The solar panel should face the sun and be kept clean in order to charge the battery efficiently.
If the solar panel does not have good exposure to sunlight, the switch should be set to “OFF”.

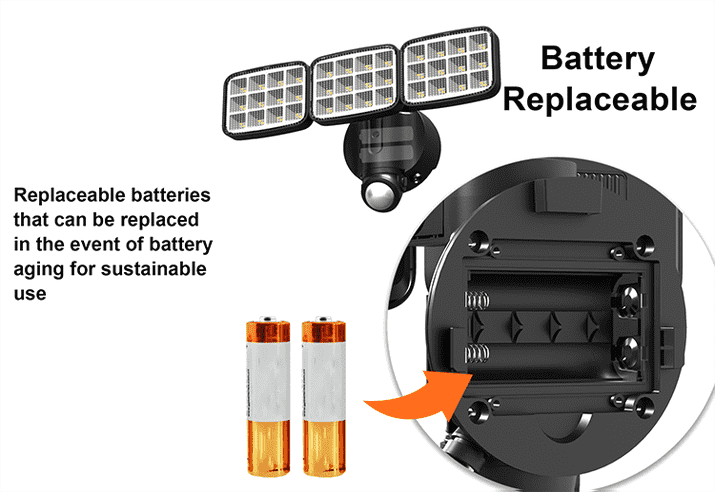

Replacing Battery
the battery pack is located in the battery housing.
- Turn the switch to the “OFF”position. Remove the four screws from the battery housing.
- Separate the battery pack connector, remove the old battery pack, replace only with identical rechargeable battery.
- Replace the cover of the battery housing, secure it with four screws.
Specification
Material | ABS |
Lamp color | Black |
Power & Lumen | 10w ; 1200lm |
Battery | 4000mAh; 3.7v |
CCT | 6000±355k |
Waterproof | IP65 |
Solar panel size: | 18.5*15.5 cm; 5.5v,4w |
Working Mode | 3 working modes |
Package Include
1*Light 1*Solar Panel 4*Expansion Screws 1* User manual
Installation Solar Motion Light
- Determine where the light and solar panel will be installed, up to 3m apart. The solar panel should be in a position to receive full and direct sunlight a minimum of 6-8 hours a day, such as a wall or a roof.
- Mount the light 2-3m above ground on a slid , secure surface capable of supporting its weight and which will not move when exposed to vibration or wind.It must be high enough to allow for motion detection and light distribution.
- Using the mounting plate as a template, make holes to drill.
Note:Make certain that the drilling path is clear of cables and electrical wires.
Place mounting bracket on drilled holes and use mounting screws to secure.
- Install the solar panel in the same way.
- Swivel the motion detector head so that it faces the area for movement detection.
Operation system motion sensor light outdoor solar
Before Use
Charge the solar panel in sunlight for 3 days to fully charge the battery: Turn switch to “OFF”position and then turn switch to “ON”after 3 days.
Control Switch
ON : Light turn on
OFF: Light turn off
Test : Test mode, the light will light on in day and night.
Motion Sensor Mode
1st Mode: Medium Light+Sensor Mode
No movement detected, the light is medium brightness, when motion detected, the light become high brightness.
2nd Mode: Sensor Mode
No movement detected, the light is not light up, only when motion detected, the light become high brightness.
3rd Mode：Medium Light
Evening comes, light auto on and keep medium brightness (no motion function).
Cleaning & Care motion sensor solar light
- When storing indoor for more than 2 or 3 days, turn the switch to “OFF”.Store in a dry location free of dust and debris. Ensure the light is out of reach of children.
- The light must be fully charged for 5 days and switch to “OFF”position before storage. Storing the light for prolonged periods may damage the light or decrease performance.
- Keep the solar panel free from dirt and debris. A dirty solar panel will reduce charging efficiency. Clean regularly with a damp cloth.
