About This Item

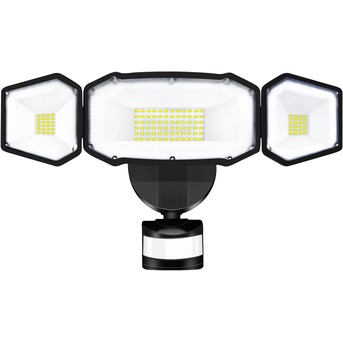

WV-TH/AC50W/MS-STAR
- Flood Light with 3 Adjustable Modes : The LED flood light has 3 adjustable working modes SENS, TIME and LUX. You can set the LED floodlight faster and more precisely according to your needs. With "TIME", you can set the light duration between 5S and 10MIN. The working time can be adjusted by "LUX", and you can choose "MOON" or "SUN" mode as needed. You can set the detection distance in the "SENS" mode. Note: The detection distance is influenced by the ambient temperature

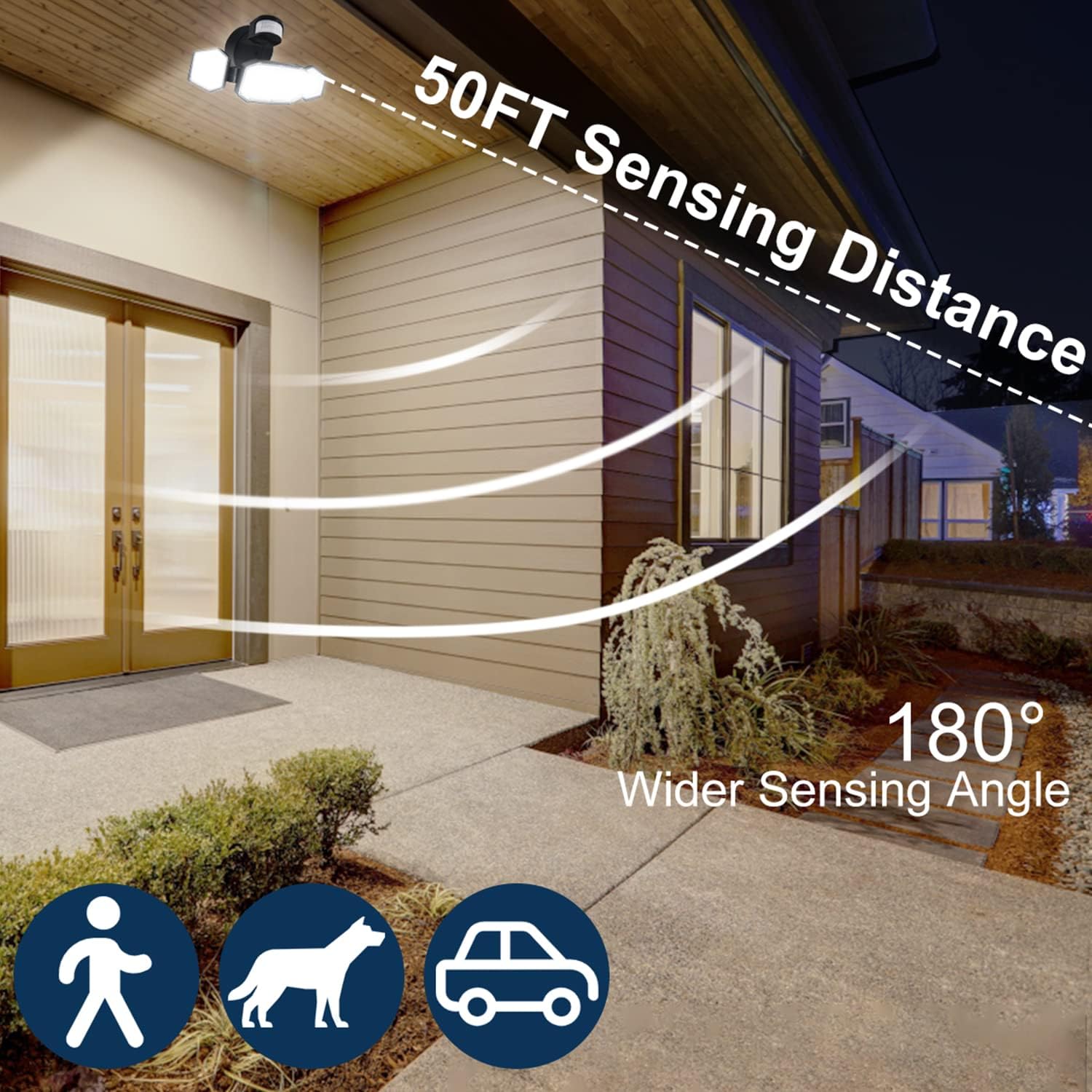

- Sensitive PIR Motion Detector : Our PIR flood light will not switch on automatically during the daytime. But at night, it automatically turns on when motion is detected. 180° infrared sensor can detect motion in a range of up to 50ft./15m. Saves more than 80% on your electricity bill compared with equivalent traditional halogen bulb 300W.

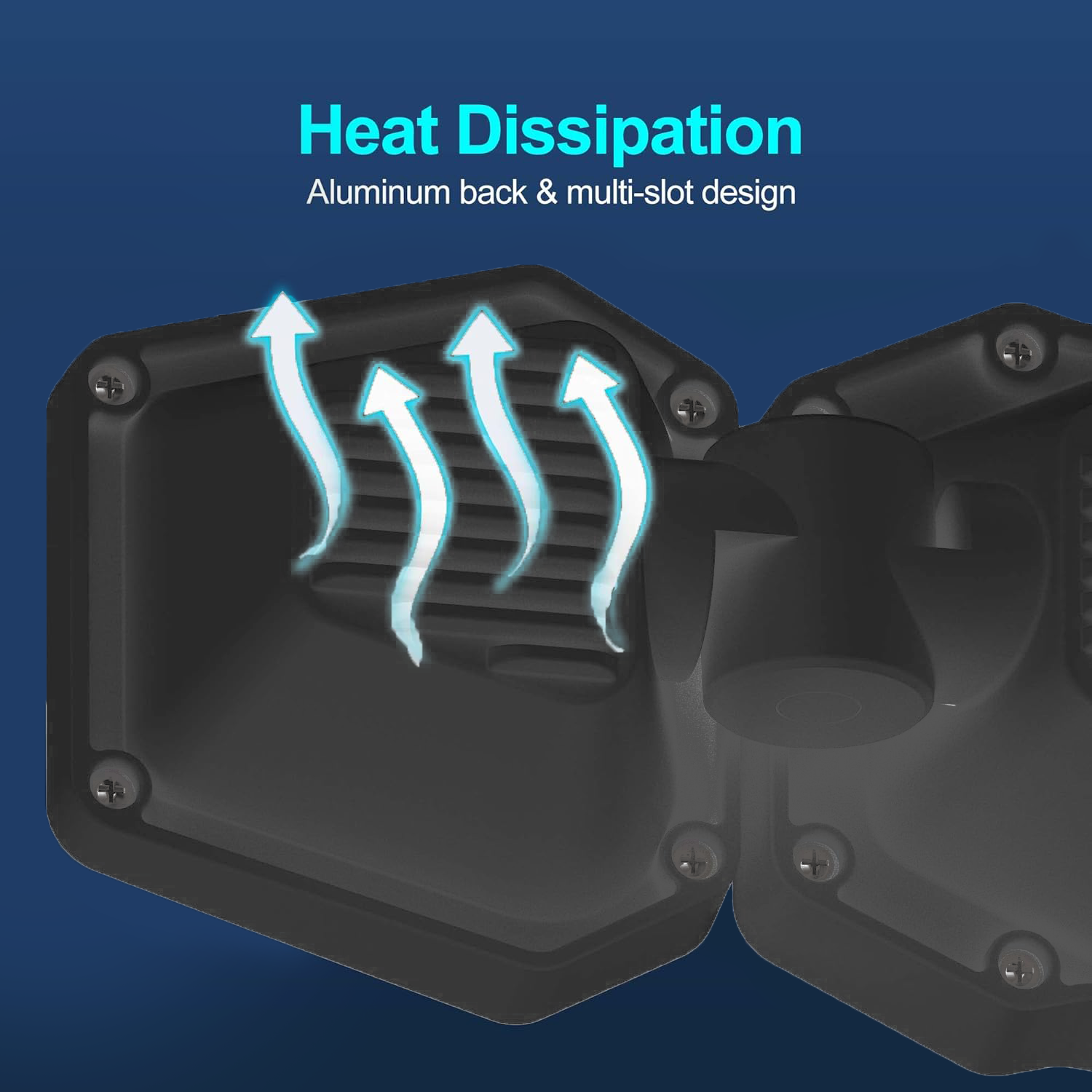

- Ultra bright & Energy Saving : The motion sensor light outdoor offer brighter lighting(50W 5000LM), 5000K daylight white lighting. The innovative heat sink on the back side dissipates heat efficiently and extends LED life to 50,000 hours. With a beam angle of 270°, LED floodlights create a large and friendly illumination. Ideal for illuminating yard, lawns, patios, driveways, sidewalks, gardens, garages, verandas, etc..
- Security Lights with 3 Adjustable Heads : The angle of individual lights can be adjusted separately. You can adjust all lights up and down or left and right (90° in verticality / 90° in horizontality). The motion sensor can also be adjusted up and down by 180 °. You can adjust the angle of the outdoor lamp as needed to achieve optimal coverage, and provide extra security for your family and pets.
- Easy to Install & 12 Months Warranty : The security light with motion sensor can be installed anywhere in your home or outdoors in minutes. No electrician is required.
Important & Safety Information
Thank you for purchasing the LED outdoor security light with motion activation control. Please read and understand this entire manual before attempting to assemble, operate or install the product. Keep these instructions in a safe and dry place for future reference.
Important & Safety Instruction
1. Please read all warning and instruction labels included in the box to avoid personal injury and property damage caused by fire, cuts, bruises, death, and other dangers.
2. Please follow the general precautions before installing, maintaining, or fixing
3. Installation requires a person familiar with the construction and operation of the luminaire ‘ s electrical systems and the hazards involved. If not qualified, do not attempt installation. Contact a qualified electrician. Do not install the damaged product.
1. Turn off electrical power at fuse or circuit breaker box before wiring fixture to the power supply.
2. Verify that the supply voltage is correct. Connect fixture to an 85-265v, 50-60Hz power source.
3. Make sure all the electrical and grounded connections are under the National Electrical Code and
any applicable local code requirements.
4. This product is intended for use with the enclosed gasket or a junction box marked for use in wet locations.
Installation & Instructions
To prevent electrical shock, disconnect or turn the power OFF at the electrical panel before installation. Make sure the voltage matches the fixture rating. Make sure all electrical and grounded connections are under the National Electrical Code (NEC) and applicable local code requirements. All wiring connections should be with UL-approved wire connectors..
Prepare fixture and fixing bar
❖ If there is an existing fixture, remove it. Expose the supply wires from the j-box. Mount the crossbar plate to the junction box.
Make wire connections: Gently pull the supply wires through the hole in the gasket. Connect the white supply wire to the white fixture wire. Secure with wire nuts. Connect the black supply wires to the black fixture wire. Secure with wire nuts.
Either wrap the green wire around one of the protruding screws or connect it to the supply ground wire. Secure all the wires with electrical tape. Carefully tuck all the wires back into the junction box.
Mount fixture t。crossbar plate:
❖ Position the fixture over the crossbar plate. Align the holes in the center of the crossbar plates and secure with the screw and rubber cover.
Restore the electricity and check the operation

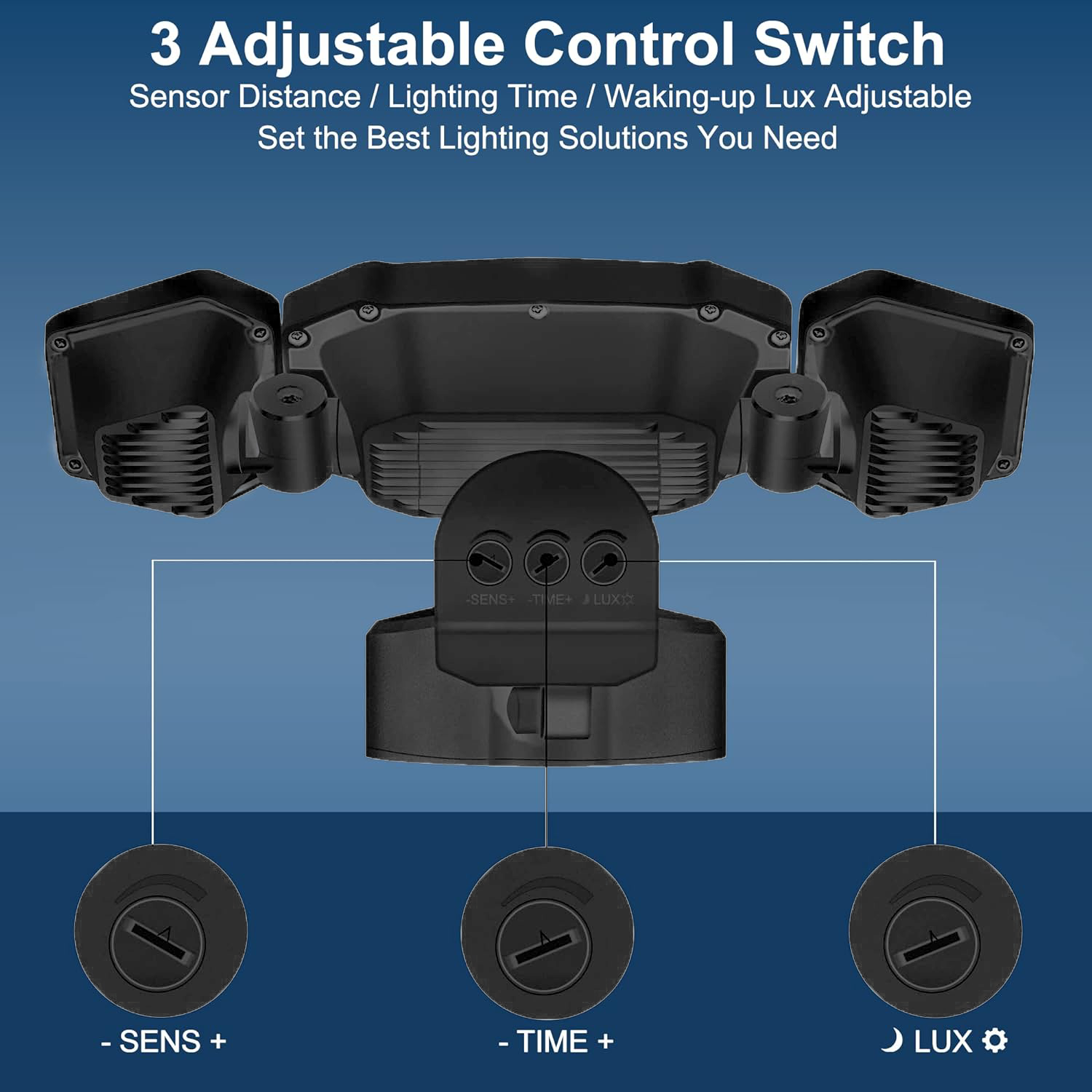

Motion Sensors Adjustment
1. PIR Sensitivity Adjustment
To adjust the motion detected range, you can use the sensitivity adjustment switch.Rotate it towards the (+) sign and increase the detection range (as far as 50 ft. / 15 m). Rotate it towards the (-) sign and reduce the detection range (as close as 6 ft. / 2 m).
2. PIR Time Adjustment
To adjust the lighting period to your preference, you can use the time adjustment switch. Rotate it towards the (+) sign to increase the time delay (up to 10 min ± 2 min). Rotate it towards the (-) sign and reduce the time delay (down to 8 sec± 5 sec).
3. PIR Dusk – Dawn adjustment
To adjust the ambient light state, use the lux adjustment switch. Rotate it towards the moon to let the light turn ON or OFF from dusk to dawn. Rotate it towards the sun, the light will be turned ON during the day and night.
OFF from dusk to dawn. Rotate it towards the sun, the light will be turned ON during the day and night.
Lamp | 120 super bright white LEDs |
Power | 50w |
Illumination Output | Approx. 6000 lumens |
CCT | 5000K |
Sensor Detection Range | 50 feet Max. |
Beam Angle | 180 degree |
Bulb | LED Beads (irreplaceable) |
Power source | AC 120V (110-130) |
PACKAGE INCLUDED
1* LED Security Light 1* Accessories Bag 1* Gasket 1* Fixing Bar 1* Instruction
